Gas Boilers

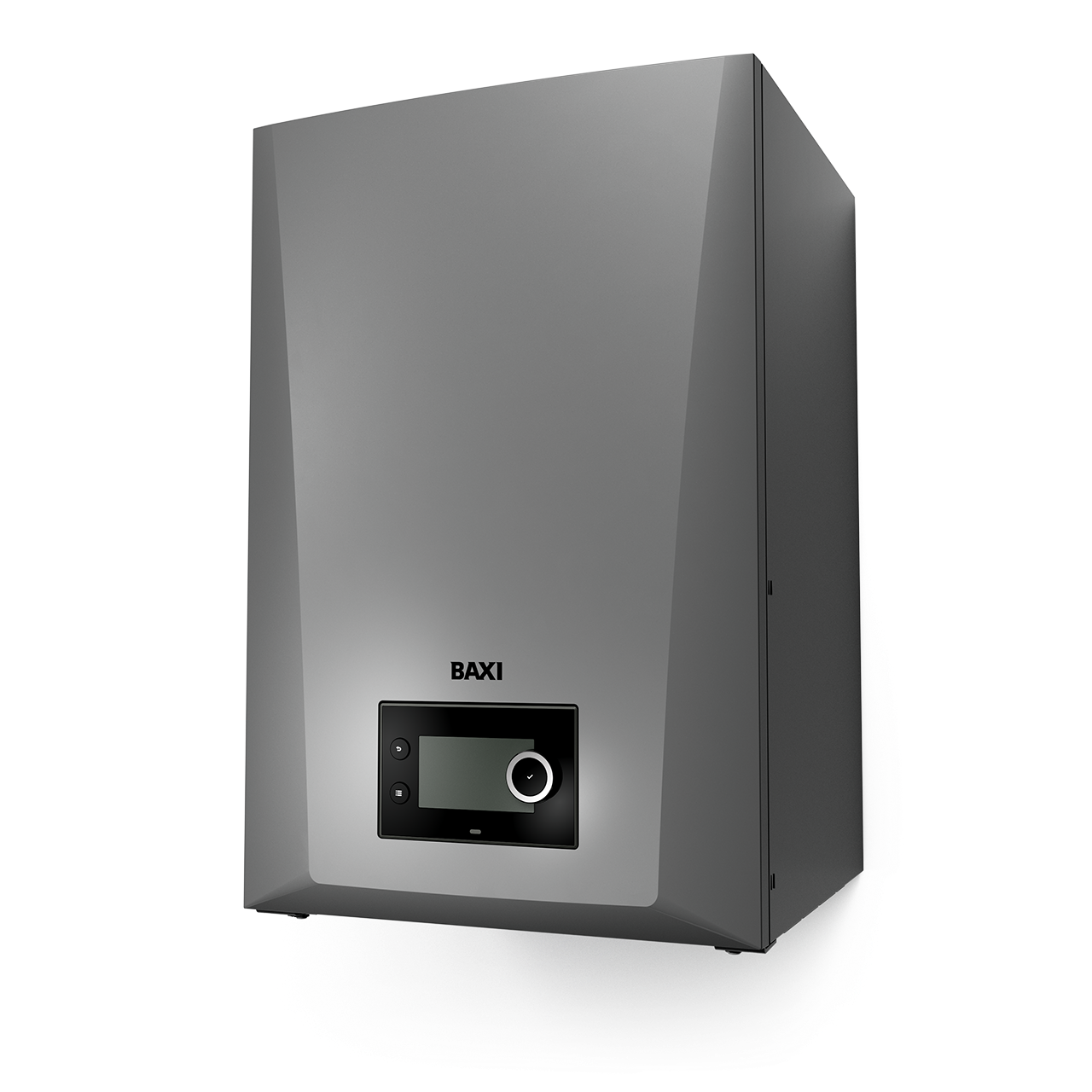

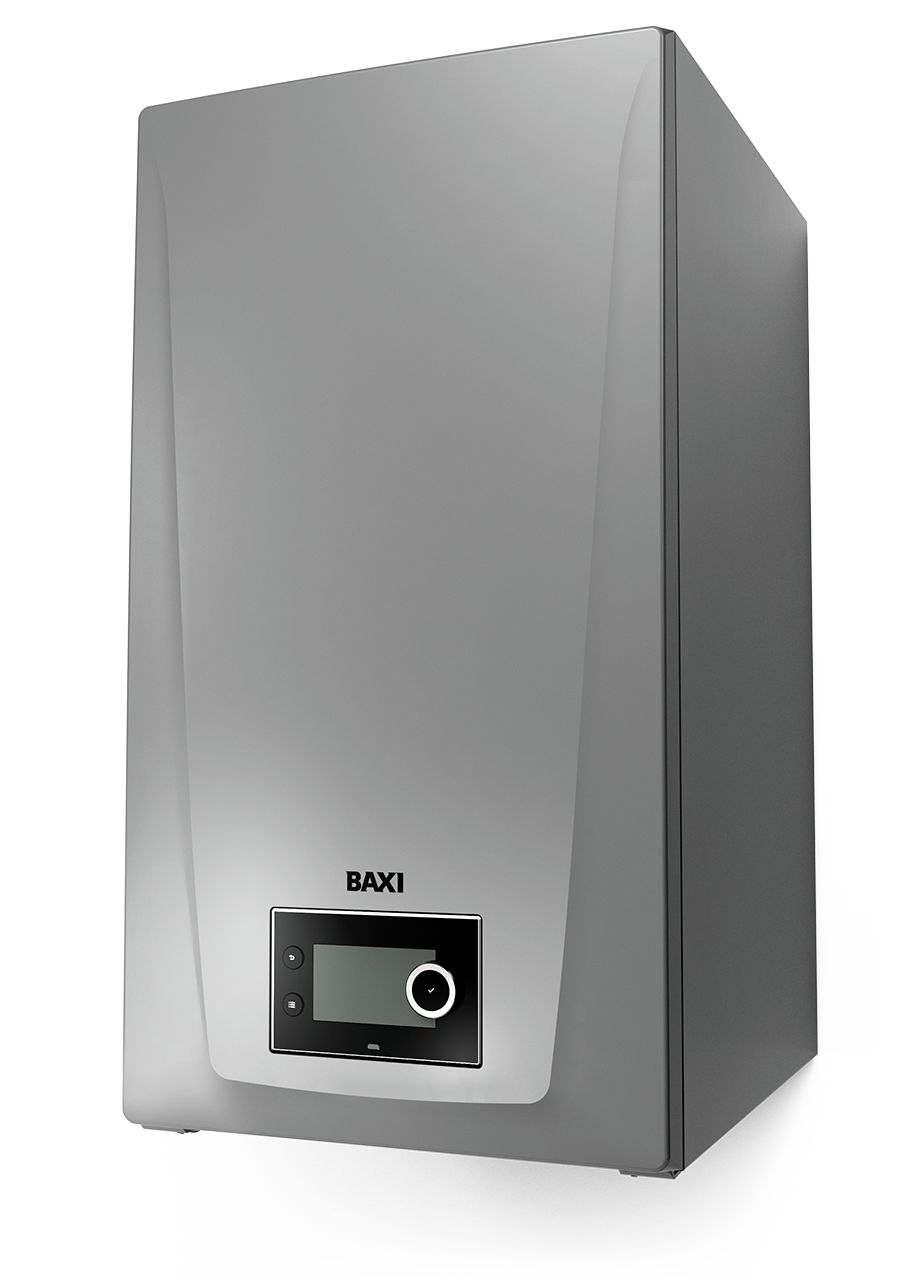

Baxi Quinta Ace S

Available in seven outputs, the Baxi Quinta Ace S can be installed individually or as part of a multi-boiler cascade or rig system, for flexible design and reliable high quality performance.

The Quinta Ace S has a gross seasonal efficiency of up to 97.3% for reduced energy consumption and a low NOx from 19mg/kWh that minimises the impact on the environment. Featuring a lightweight stainless steel heat exchanger and Bluejet burner for reliable heat transfer, the Quinta Ace S comes with the latest control board and a state of the art HMI, offering improved control options.

The Quinta Ace S is programmable to work with solar thermal, biomass, buffer tanks and heat pump hybrid control systems for a sustainable, energy efficient solution.

Select

Features and Benefits
Product Literature
Dimensions
Technical Specification

Features and Benefits

High efficiency

Up to 97.3% GCV for higher than average energy savings

Low emissions

Low NOx annual emission levels from 19mg/kWh minimises impact on the environment

Lightweight stainless steel heat exchanger

Providing reliable, energy efficient heat transfer. Up to 9:1 modulation ratio reduces constant on/off cycling to improve efficiency and boiler longevity

Advanced controls

Supplied with the latest control board and a state of the art HMI, offering improved control options

Compact design

Easier to install, offering 110kW, 130kW and 150kW outputs within the same footprint as our 90kW boiler

Warranty

Up to 7 years enhanced warranty† for complete peace of mind

Show Less

Product Literature

Installation & Service Manuals

Specification Guides

Technical Specifications

Energy Labels

Product Fiche

CAD

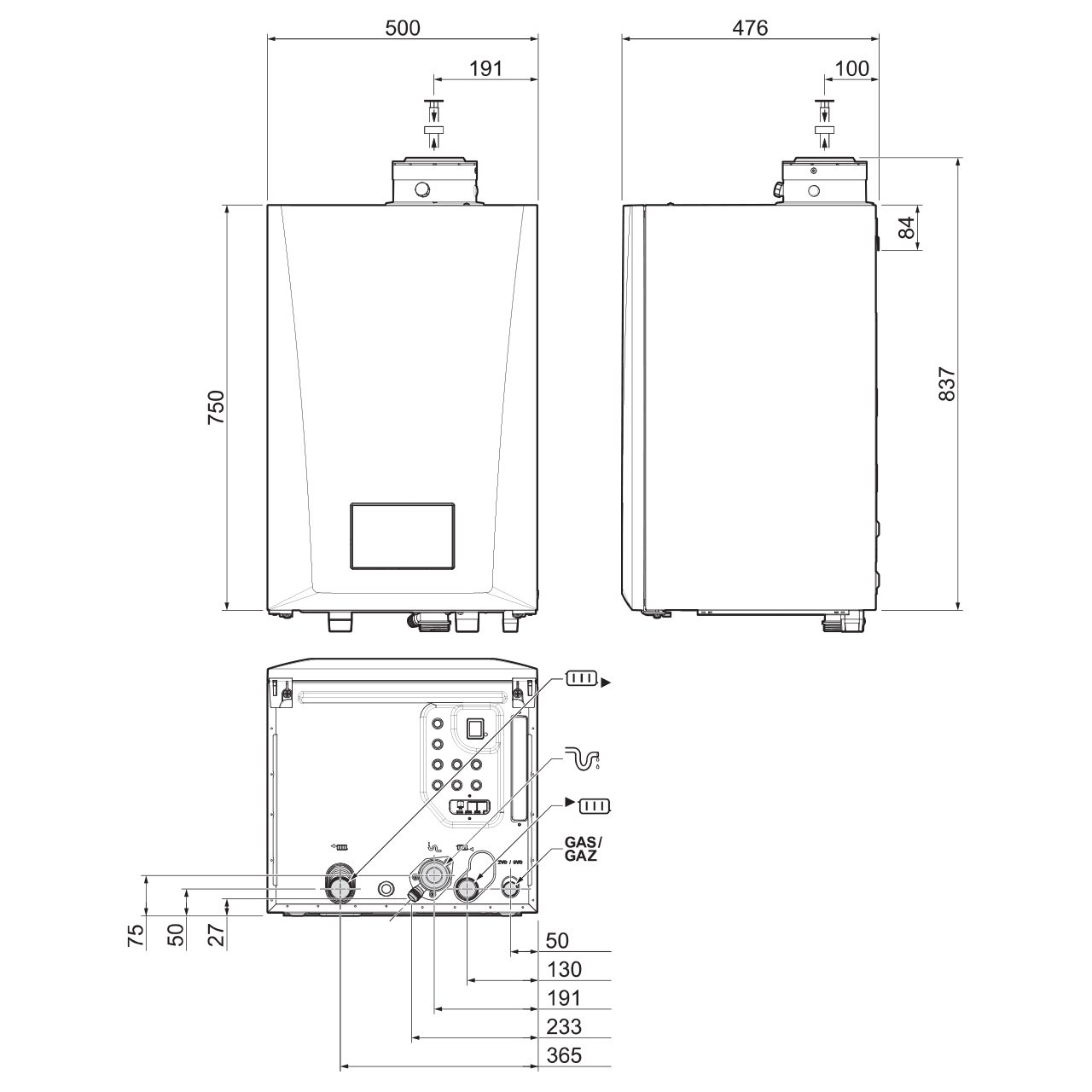

Dimensions

50kW – 70kW

Height: 766mm

Width: 500mm

Depth: 560mm

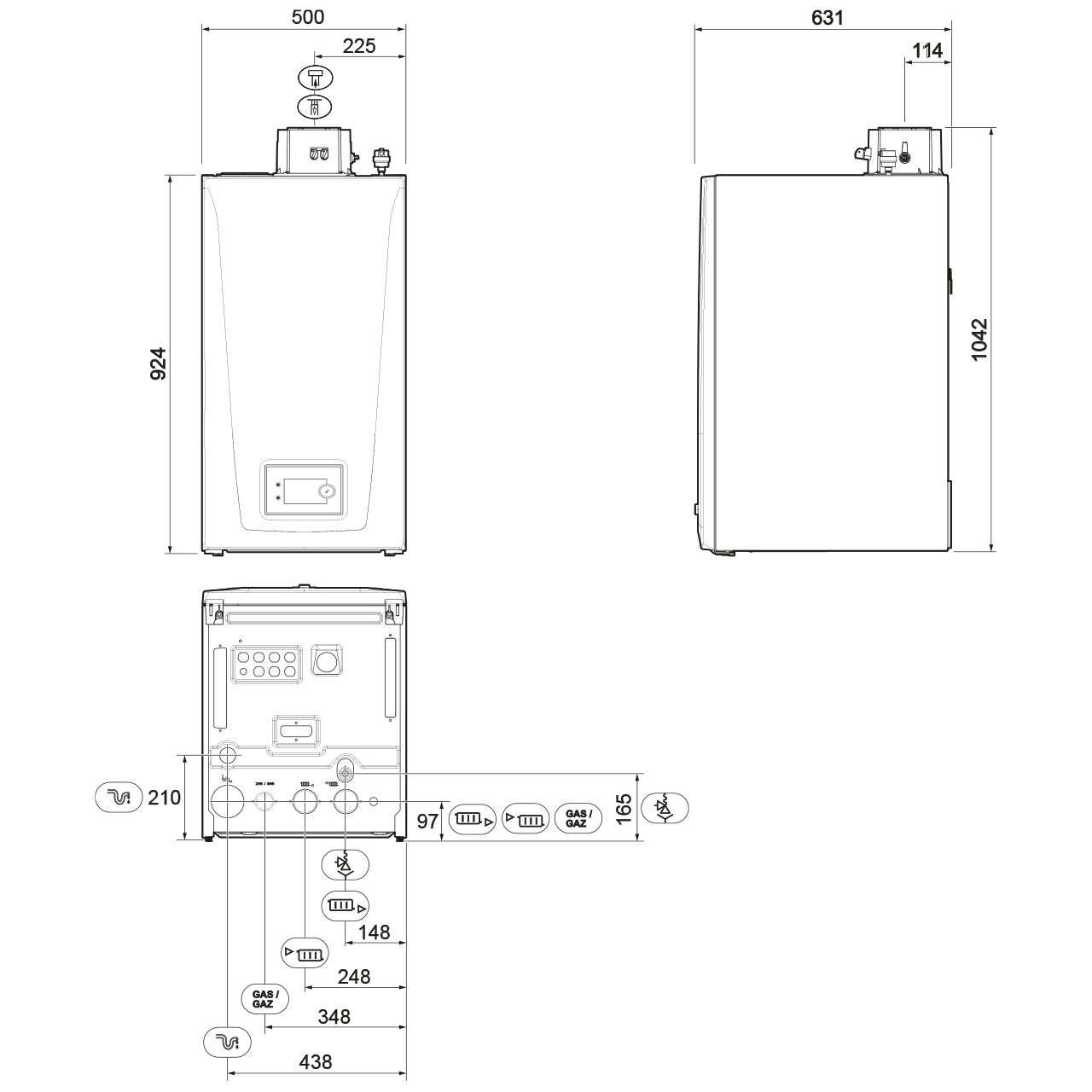

Dimensions

90kW – 150kW

Height: 924mm

Width: 500mm

Depth: 631mm

Baxi Quinta Ace Gas Boilers Dimensions - Baxi Commercial Solutions

Technical Specification

Baxi Quinta Ace S	50	60	70	90	110	130	150
Performance
Nominal heat output central heating operation @ 80/60°C kW (min–max)*	5.0 - 45.0	6.1 - 55.0	7.2 - 65.0	9.4 - 85.0	11.4 - 102.0	28.4 - 121.5	28.1 - 140.3
Nominal heat output central heating operation @ 50/30°C kW (min–max)*	5.4 - 48.6	6.6 - 59.4	7.8 - 70.2	10.2 - 91.8	22.1 - 110.2	30.6 - 130.6	30.2 - 150.9
Nominal input (Hi) (min–max) kW	5.1 - 46.3	6.3 - 56.6	7.4 - 66.9	9.7 - 87.4	21.0 - 104.9	29.0 - 123.8	28.6 - 143.0
Efficiency
SBEM seasonal efficiency GCV %	95.3	95.0	94.7	95.1	95.0	96.0	96.0
Efficiency – full load 100% NCV %	97.4	97.2	97.2	97.3	97.2	98.1	98.1
Efficiency – part load 30% NCV %	107.8	107.5	107.1	107.5	107.4	108.6	108.6
Eco design useful efficiency@ 80/60°C (100% full load) GCV %	87.8	87.6	87.6	87.7	87.6	88.4	88.4
Eco design useful efficiency @ 50/30°C(30% part load) GCV %	97.1	96.9	96.5	96.9	96.8	97.8	97.8
Energy labelling seasonal space efficiency GCV %	92	92	92	N/A	N/A	N/A	N/A
ErP efficiency rating	A	A	A	N/A	N/A	N/A	N/A
Annual energy consumption Gj	141	172	203	N/A	N/A	N/A	N/A
Gas
Standard fuel	Natural Gas	Natural Gas	Natural Gas	Natural Gas	Natural Gas	Natural Gas	Natural Gas
Optional fuel adjustment – see installation and service manual	LPG(Propane)	LPG(Propane)	LPG(Propane)	LPG(Propane)	LPG(Propane)	LPG(Propane)	LPG(Propane)
Min / Max Gas consumption NG m3/h	0.54 - 4.90	0.70 - 5.99	0.78 - 7.08	1.03 - 9.25	2.22 - 11.10	3.07 - 13.10	3.03 - 15.13
Min / Max Gas consumption LPG m3/h	0.21 - 1.89	0.26 - 2.31	0.30 - 2.73	0.51 - 3.57	0.86 - 4.28	1.45 - 5.06	1.67 - 5.84
Min/max gas inlet pressure NG mbar	17 - 25	17 - 25	17 - 25	17 - 25	17 - 25	17 - 25	17 - 25
Min/max gas pressure LPG mbar	30 - 50	30 - 50	30 - 50	30 - 50	30 - 50	30 - 50	30 - 50

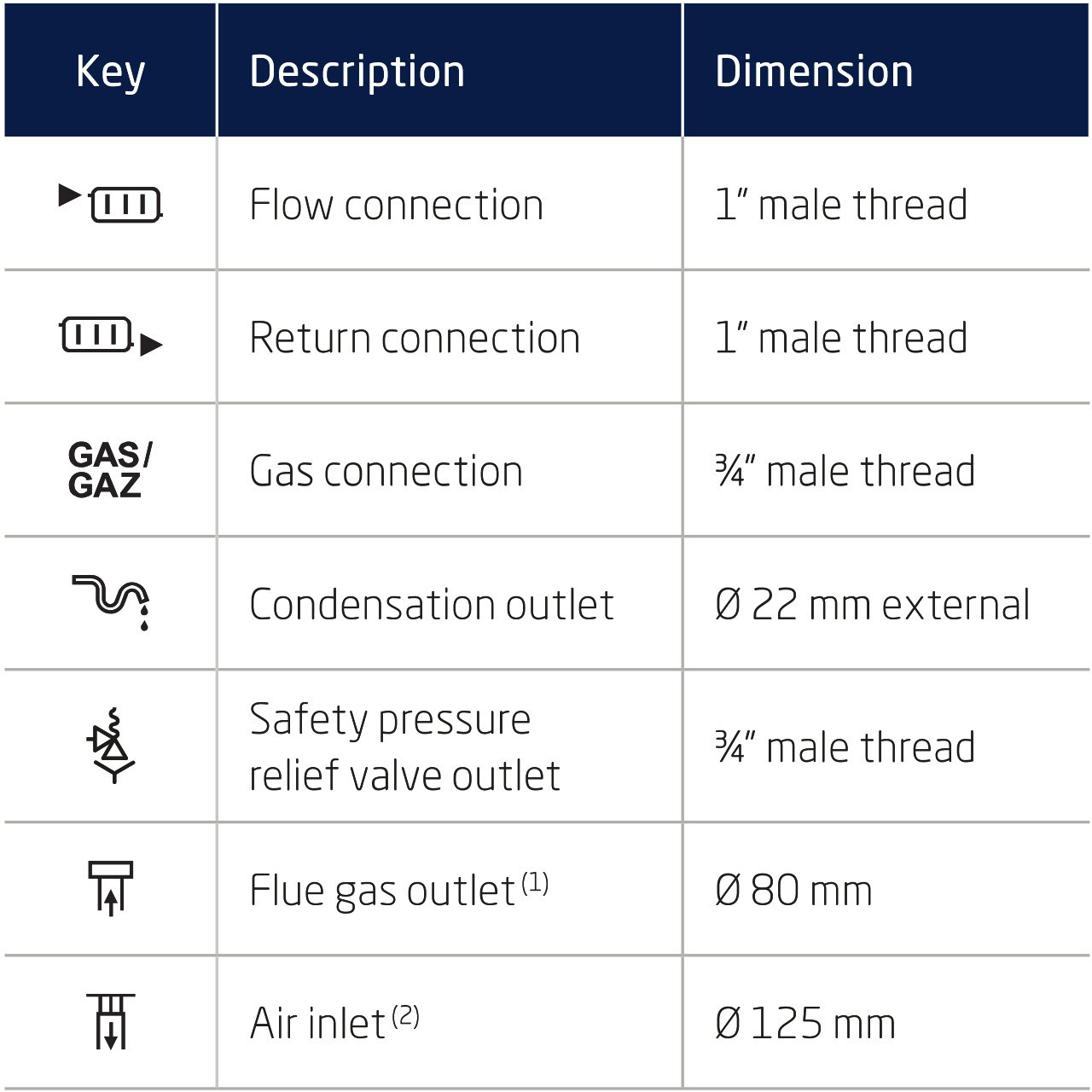

Gas connection size BSP inches	3/4 male thread	3/4 male thread	3/4 male thread	1 male thread	1 male thread	1 male thread	1 male thread
Flue
Flue diameter mm I/D	80	80	80	110#	110#	110#	110#
Air inlet diameter mm I/D	125	125	125	160#	160#	160#	160#
Min/max flue gas mass flow ratekg/s	7.2 - 75.6	10.8 - 93.6	1.44 - 111.6	18 - 144.0	18 - 169.2	43.2 - 201.6	50.4 - 230.4
Max flue gas temperature °C	92	96	76	70	70	70	70
Max counter pressure Pa	185	175	192	153	190	180	270
Hydraulics
Water content litres	4	5	6	9	10	10	11
HydraulicResistance @ 15°C ∆T mbar	836	924	809	667	709	770	924
Hydraulic resistance @ 20°C ∆T mbar	470	520	455	375	399	433	520
Nominal flow rate @ 15°C ∆T l/s	0.72	0.88	1.04	1.36	1.63	1.94	2.24
Nominal flow rate @ 20°C ∆T l/s	0.54	0.66	0.78	1.02	1.22	1.45	1.68
Condensate connection (mm) dia	22	22	22	24	24	24	24
Standard operating temperature** °C	20 - 90	20 - 90	20 - 90	20 - 90	20 - 90	20 - 90	20 - 90
Max operating temperature °C	90	90	90	90	90	90	90
High limit temperature °C	110	110	110	110	110	110	110
Max water operating pressure bar	4	4	4	4	4	6	6
Min water operating pressure bar	0.8	0.8	0.8	1	1	1	1
Min operating pressure bar (OV)**	N/A	N/A	N/A	N/A	N/A	N/A	N/A
General
Total weight (including packaging) kg	43.8	43.8	45.3	97.5	110.6	110.6	113
Min mounting weight without front panel kg	35.4	35.5	37.0	83.1	96.2	96.2	98.6
Dimension mm (HxWxD)	766 x 500 x 560	766 x 500 x 560	766 x 500 x 560	924 x 500 x 631	924 x 500 x 631	924 x 500 x 631	924 x 500 x 631
NOx Annual Emissions BREEAM EN15502 – NG mg/kWh (dry, 0% O2) Class 6***	19	22	22	22	23	19	23
BREEAM Credits ***	2	2	2	2	2	2	2
Noise levels dB(A) at 1 metre	53.3	52.6	56.9	56.4	56.8	52.6	56.7
Eco design sound power levels LWA indoors dB	64	63	68	68	68	64	68
Standby heat loss kW	0.089	0.097	0.104	0.050	0.073	0.097	0.121
Electrical
Nominal power supply	230v x 1ph x 50hz	230v x 1ph x 50hz	230v x 1ph x 50hz	230v x 1ph x 50hz	230v x 1ph x 50hz	230v x 1ph x 50hz	230v x 1ph x 50hz
Power consumption w	21 - 102	19 - 110	19 - 113	17 - 140	21 - 178	20 - 159	22 - 238
Modulating input v dc	0 - 10	0 - 10	0 - 10	0 - 10	0 - 10	0 - 10	0 - 10
Controls voltage (Potential free Contact)	0 Volts	0 Volts	0 Volts	0 Volts	0 Volts	0 Volts	0 Volts
Electrical protection index VAC (1)	X5D	X5D	X5D	X5D	X5D	X5D	X5D

Find the optimal boiler cascade for your building

Take the guesswork out of system design with our Cascade Configurator. Select an aluminium or stainless steel heat exchanger, then configure your system based on your required output or number of boilers.
