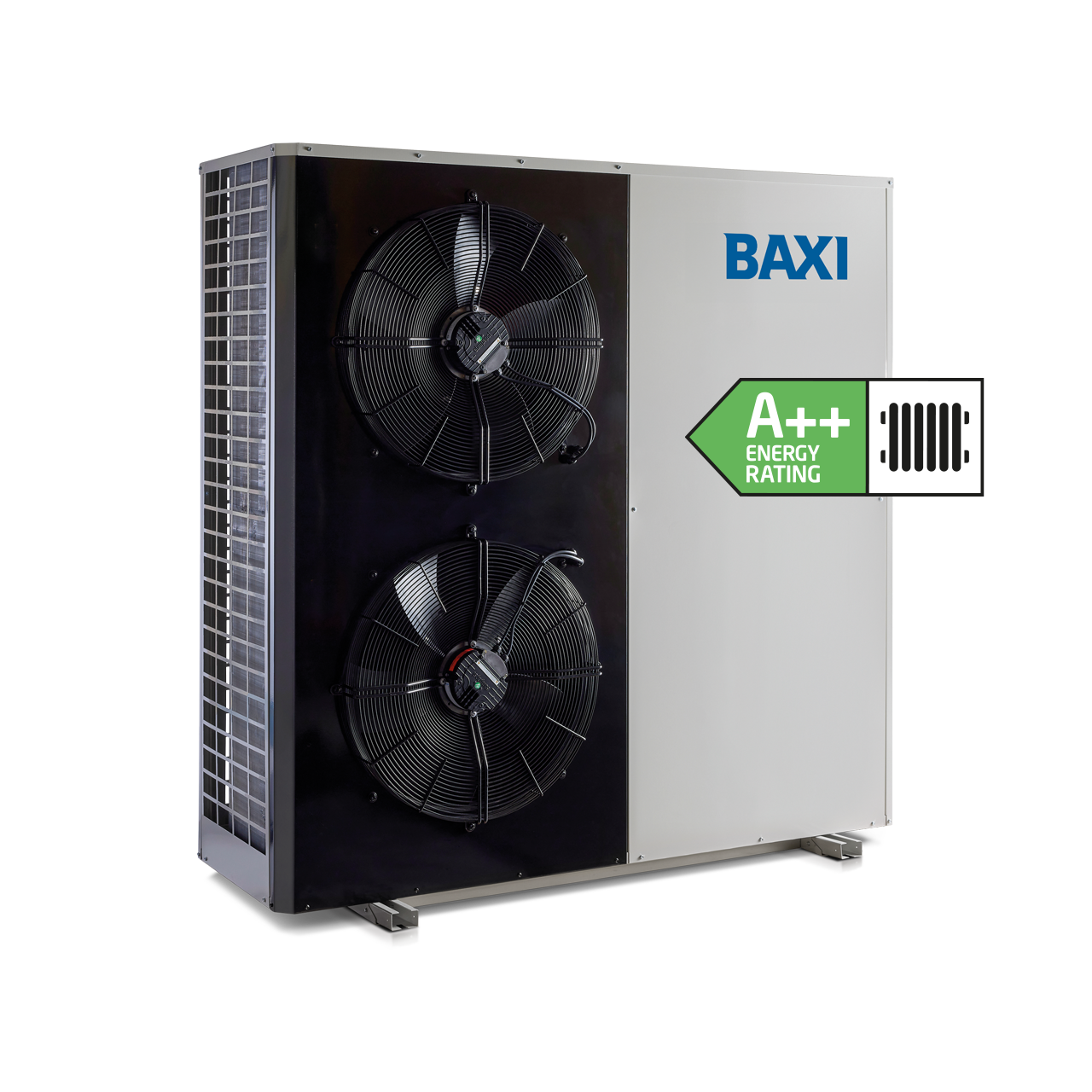

Baxi Auriga HP+ Air Source Heat Pump (ASHP)

Heat Pumps

Baxi Auriga HP+

Introducing the Baxi Auriga HP+ High-Temperature Air to Water Heat Pump, perfect for commercial applications in both fully-electric and hybrid heating systems.



Built from over 30 years’ experience in commercial air source heat pumps and low carbon heating systems across Europe, Baxi’s Auriga HP+ is a monobloc design, self-contained heat generator, extracting renewable heat from the atmosphere and amplifying it using R290 refrigerant compression.


Available in two outputs of 20kW, & 30kW Baxi Auriga HP+ air source heat pumps can be used as part of a hybrid or standalone system in both new build and retrofit applications. With operating temperatures up to 80oC, the Baxi Auriga HP+ is also perfect for Domestic Hot Water production.



Whatever the size or complexity of your project, our dedicated experts are on hand to advise you on the right product accessories to support your installation.

Contact us

Features and Benefits

High efficiency

SCOPs of up to 5.17

    High temperature

    Up to 80°C flow temperature for heat and hot water generation

      Perfect for colder climates

      Operation down to -20°C

        Greater compressor efficiency

        Control of output modulation matching output to system load via invertor driven scroll compressor modulation from 13% to 100%

          Quiet operation

          Less than 79 db(A) (Less than 56 db(A) at 5m)

            Compatible

            Compatibility with cascade or hybrid system controls of up to 8 units in cascade
              Show More
              Show Less

              Product Literature

              Specification Guides

              Specification Guides

              Product Documentation

              No documentation available.

              Technical Specifications

              Technical Specifications

              Product Documentation

              No documentation available.

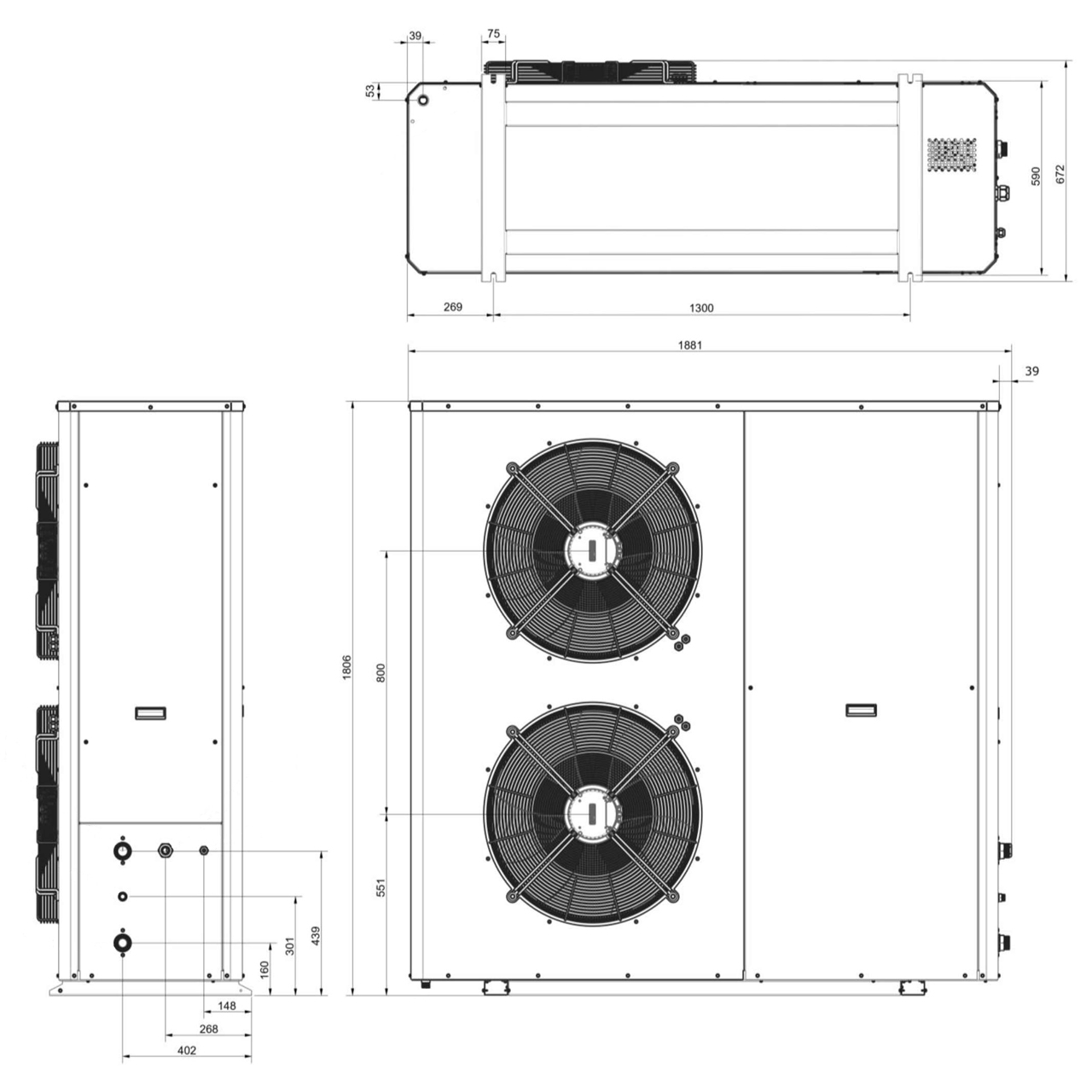

              Baxi Auriga HP+ Air Source Heat Pump (ASHP) Dimensions

              Dimensions

              A: Heat Pump Width = 1881mm

              B: Heat Pump Height = 1806mm

              C: Heat Pump Depth = 672mm

              D: Front & Rear Clearance = 1500mm

              E: Side & Top Clearance = 800mm

              Technical Specification

              Performance20T30T
              Heating capacity at A7/W3520 kW30 kW
              Power input at A7/W35**4.356.52
              COP at A7/W354.64.6
              Heating capacity at A-10/W3513.915.9 kW
              Power input at A-10/W35**2.85.68
              COP at A-10/W352.82.8
              SCOP at Water 3555.17
              SCOP at Water 553.863.96
              Seasonal efficiency at Water 35197%204%
              Seasonal efficiency at Water 55151%155%
              ERP Data
              Energy label rating at Water 35A+++A+++
              Sound power rating at A7/W3563 dB(A)65 dB(A)
              Refrigerant
              Refrigerant typeR290R290
              Refrigerant weight4.45kg4.75kg
              Refrigerant GWP33
              Equivalent CO20.01335 Tn0.01425 Tn
              Hydraulics
              Nominal volume flow rate3.5 l/s5.39 l/s
              Minimum volume flow rate1 l/s2 l/s
              Water temperature min/max+25/+80oC+25/+80oC
              Available water pressure7 mwc4.2 mwc
              Max operating pressure6 bar6 bar
              Min operating pressure0.5 bar0.5 bar
              Max supply temperature+80oC+80oC
              Flow connection size***1 ¼ inch1 ¼ inch
              Return connection size***1 ¼ inch1 ¼ inch
              Circulated pump integratedYesYes
              Pressure relief valve integratedYesYes
              Expansion vessel integratedNoNo
              Source Data
              Operating limits, source (air)-20 to +40oC-20 to +40oC
              Nominal volume flow rate, source15500 m3/h15500 m3/h
              Electrical
              Protection classIP24IP24
              Power source
              Power supply compressor3 Phase + Neutral - 50Hz3 Phase + Neutral - 50Hz
              Nominal voltage compressor400 V400 V
              Nominal voltage fans400 V400 V
              Number of compressors1 x scroll inverter1 x scroll inverter
              Number of fans2 x DC inverter2 x DC inverter
              Starting current4.6 A4.6 A
              Minimum cable size****6mm210 mm2
              Max operating current FLC20 A29.5 A
              Circuit protection type25 A Type C32 A Type C
              General
              Nominal sound power level LwA*78 dB(A)78 dB(A)
              Nominal sound pressure LpA @5m56 dB(A)56 dB(A)
              Unit Net weight330 kg360 kg
