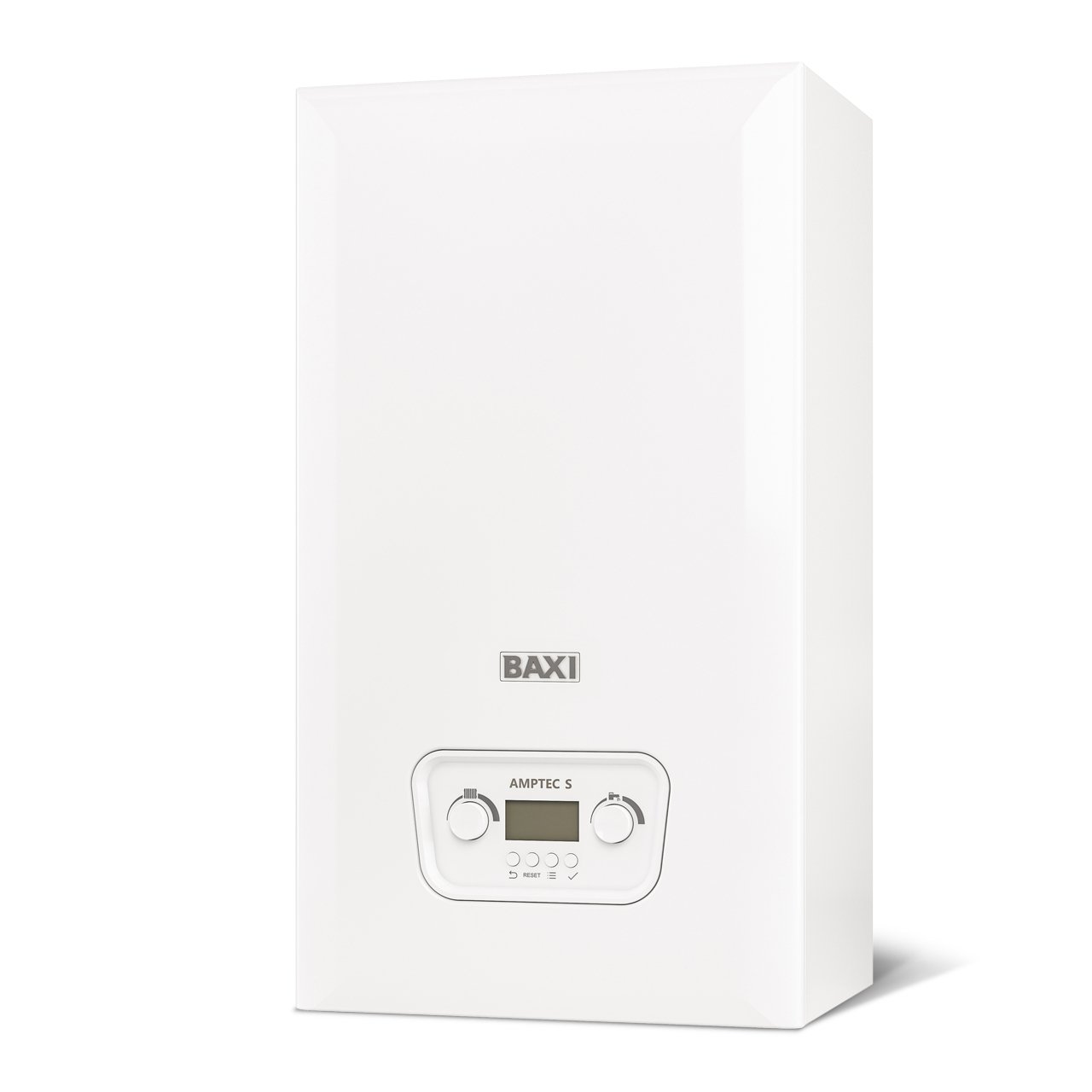

BAXI_Amptec-S_Angled

Electric Boilers

Amptec S

Efficient electric system boiler suitable for both radiator and underfloor systems



Designed to reduce unnecessary external works with all key heating system components built within the unit and can be used in conjunction with a Solar PV battery to help the user with running costs.

Contact us

    Features and Benefits

    Multiple outputs

    Available in outputs 4, 6, 8, 12, 14 and 18kW

      Adjustable temperature

      Adjustable temp from 30 to 80 degrees, making the product suitable for both radiator and underfloor heating systems

        Modulating ratio of up to 9:1

        Boiler intelligently uses the right amount of fuel to meet the set central heating temperatures, saving money on electric bills

          Light weight and compact cupboard fit

          Easier and safer to install and can fit into a 290mm deep cupboard

            Certified OpenTherm

            Can maximise boiler efficiency when fitted to OpenTherm certified controls

              Reliable

              Duty cycling of heating elements resulting in improved efficiencies and reliability of product
                Show More
                Show Less

                Product Literature

                amptec-s-line-drawing

                Dimensions

                A: Boiler Width = 395mm

                B: Boiler Height = 718mm

                C: Boiler Depth = 284mm

                D: Side Clearance = 5mm

                E: Upper Clearance = 200mm

                F: Lower Clearance = 200mm

                G: Front Clearance = 6mm in operation (450mm for servicing)

                Technical Specification

                  Single phaseSingle phaseSingle phaseSingle phaseThree PhaseThree Phase
                Product Model Amptec S4Amptec S6Amptec S8Amptec S12Amptec S14Amptec S18
                Product Code  782870678287077828708782871078287117828712
                GeneralMeasure
                Maximum direct kW ratingkW468121418
                Weight emptykg202021.521.522.522.5
                Weight fullkg2121232324.524.5
                Volumelitres111.51.522
                Pressure relief valve settingbar2.82.82.82.82.82.8
                Maximum heating pressure 2.82.82.82.82.82.8
                Minimum heating pressure 0.50.50.50.50.50.5
                Expansion vessel sizelitre777777
                Temperature setting range (min to max)deg C35-8035-8035-8035-8035-8035-80
                Maximum temperaturedeg C808080808080
                Electrical specification
                Nominal electrical power supply voltageV230230230230400 (3-phase)400 (3-phase)
                Nominal electrical power supply frequencyHz505050505050
                Nominal power consumption when runningW406060608060120601406018060
                Internal fuse ratingamp222222
                Internal MCB rating -controlsamp222222
                Internal MCB rating -elementsamp10x310x320x320x332x332x4
                Boiler must be connected to an earth supply
                Connections
                Heating flowmm22
                Heating returnmm22
                Pressure relief dischargemm15
