  2. Baxi Assure 500 System 2
Baxi Assure 500 System 2 - System Boilers

System Boilers

Baxi Assure 500 System 2

The Baxi Assure 500 System 2 boiler is the perfect solution for homes with more than one bathroom or a high demand for hot water and is compatible with the Baxi cylinders and the Megaflo Eco cylinder.

Contact us

Features and Benefits

Multiple outputs

Available in outputs of 15, 18 and 24kW, natural gas or LPG

    Safer and cleaner

    Combined PrV with seperate drain to facilitate a safer and cleaner boiler drain down for repair

      Robust components

      Brass hydraulics and stainless steel heat exchanger for peace of mind

        Ready for winter

        Pre-heated condensate trap to help prevent freezing in winter

          Compact size

          Fits inside a standard kitchen cupboard

            Pressure gauge

            External analogue pressure gauge - for easy self-top up, to help prevent call outs
              Show More
              Show Less

              Product Literature

              Installation & Service Manuals

              Installation and Service Manuals

              Product Documentation

              No documentation available.

              User Guides

              User Guides

              Product Documentation

              No documentation available.

              Specification Guides

              Specification Guides

              Product Documentation

              No documentation available.

              Technical Specifications

              Technical Specifications

              Product Documentation

              No documentation available.

              Product Fiche

              Product Fiche

              Product Documentation

              No documentation available.

              Energy Labels

              Energy Labels

              Product Documentation

              No documentation available.

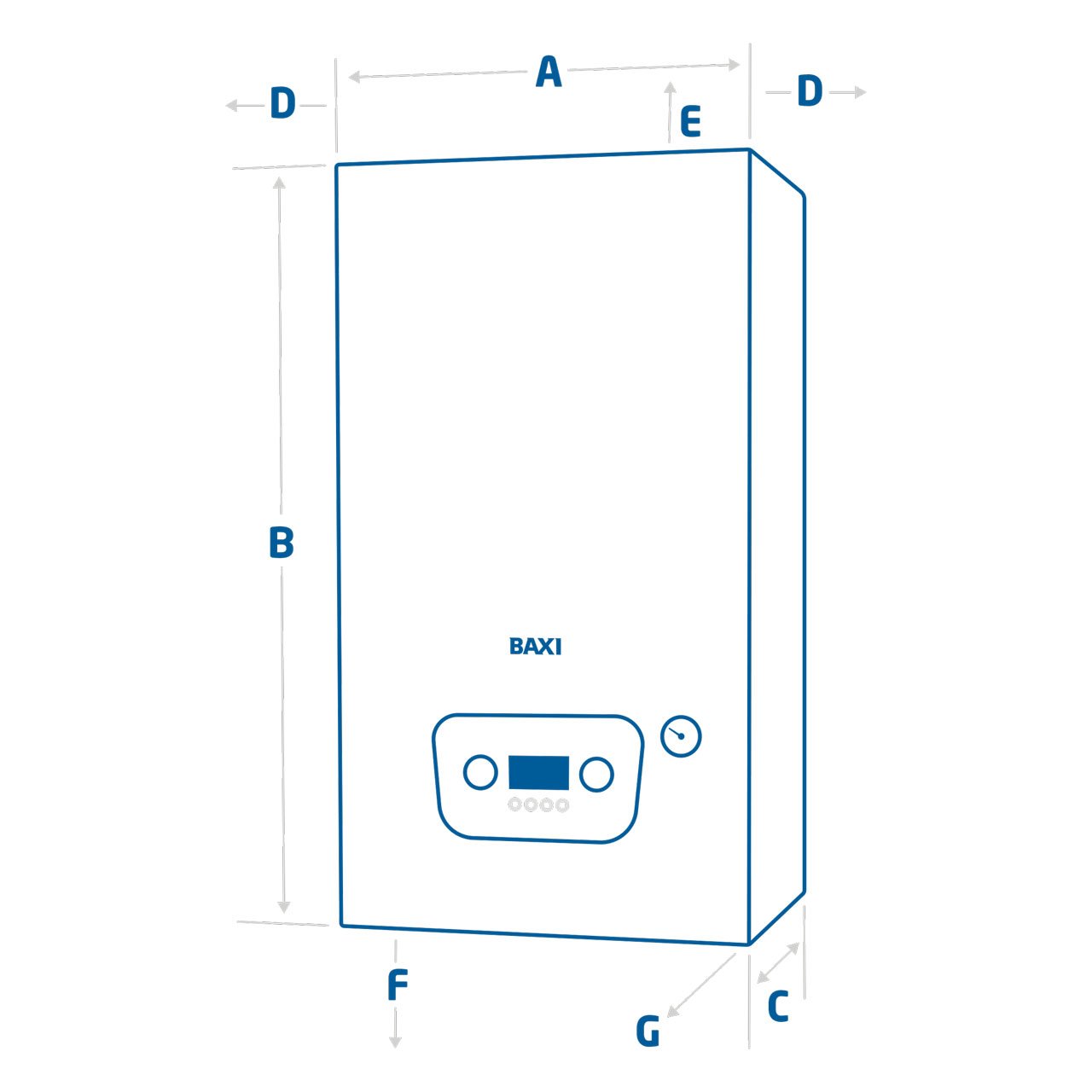

              Baxi Boiler Dimensions

              Dimensions

              A: Boiler Width = 390mm

              B: Boiler Height = 700mm

              C: Boiler Depth = 285mm

              D: Side Clearance = 5mm

              E: Upper Clearance = 178mm

              F: Lower Clearance = 200mm

              G: Front Clearance = 5mm in operation (450mm for servicing)

              Technical Specification

              Product Model Baxi Assure 515 System 2Baxi Assure 518 System 2Baxi Assure 524 System 2
              Product code781431878143197814320
              Gas
              Natural Gas or LPGYesYesYes
              Inlet supply pressure (NG)202020
              Maximum gas rate (G20)1.641.972.61
              Heat Input CHkW (max) gross (QnHs)15.518.624.7
              Heat Input CHkW (min) gross (QnHs)4.94.94.9
              Heat output CH (non-condensing)kW (max) (pn)151824
              Heat output CH (non-condensing)kW (min) (pn)4.84.84.8
              Heat output CH (condensing)16.319.926.3
              Heat output CH (condensing)5.25.25.2
              Heat input domestic hot waterN/AN/AN/A
              Heat input domestic hot waterN/AN/AN/A
              Water heating efficiency classAAA
              Electrical
              Permanent live requiredYesYesYes
              Pumps overrunYesYesYes
              Integral 'boiler only' frost thermostatYesYesYes
              Hydraulic
              Maximum DHW flow rate (Delta T @ 35’C rise)VminN/AN/AN/A
              Minimum DHW flow rate requiredVmin222
              Minimum operating DHW pressure requiredbar0.50.50.5
              Integral expansion vesselSize (litres)777
              Maximum capacity of the CH systemLitres100100100
              Integral automatic bypassYesYesYes
